Capabilities
Our competitive advantage has historically been in producing obsolete components and completing certification processes to achieve Military Specification. We have remained the sole source for the DOD on multiple products. Our staff is comprised of experienced systems, mechanical, and electronic engineers, machinists, and QC personnel.
Approach and Experience
The systems engineers specialize in product development of military armament and propulsion systems. We use the latest CAD/CAM technology is used to accurately model and simulate products before production.
- Mechanical
- Electronics
Equipment

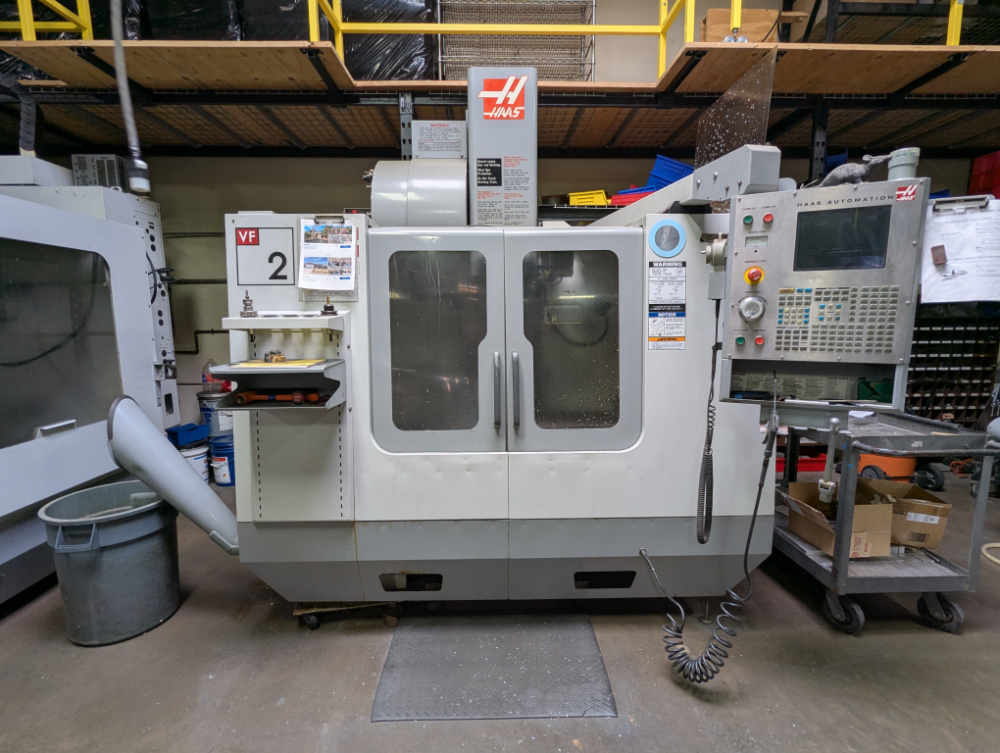

Haas VF-2
Type: Milling
Capacity: 30 x 16 x 20
Description: 3 axis CNC mill with 4th axis rotary milling, wireless probe system

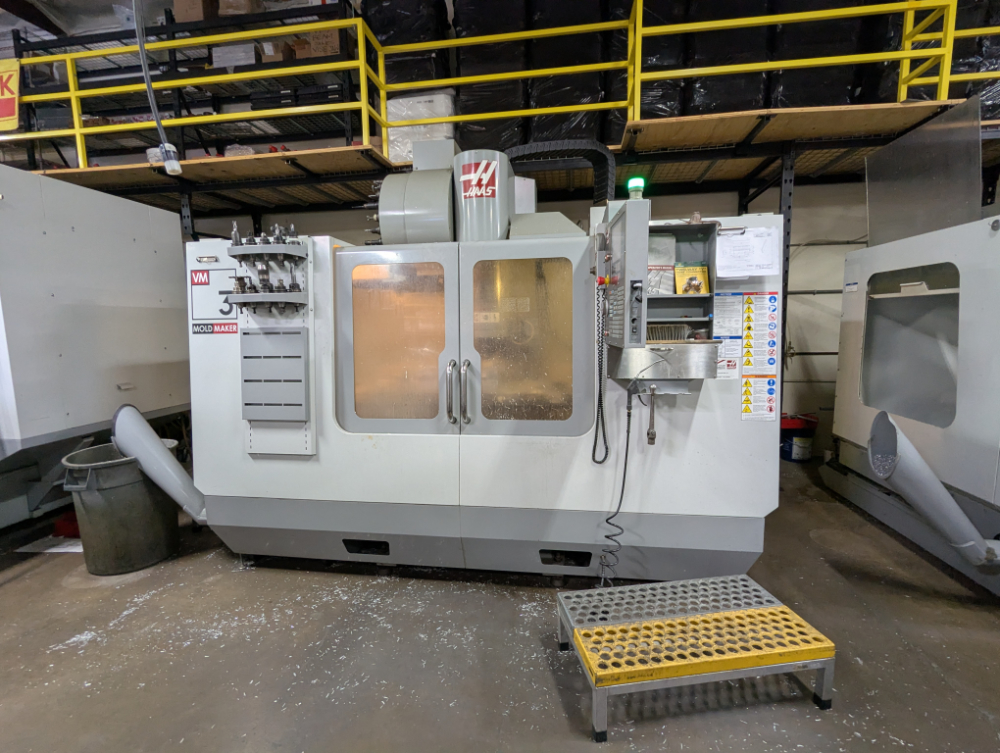

Haas VM-3
Type: Milling
Capacity: 40 x 20 x 25
Description: 3 axis CNC mill with 4th axis rotary milling, wireless probe system

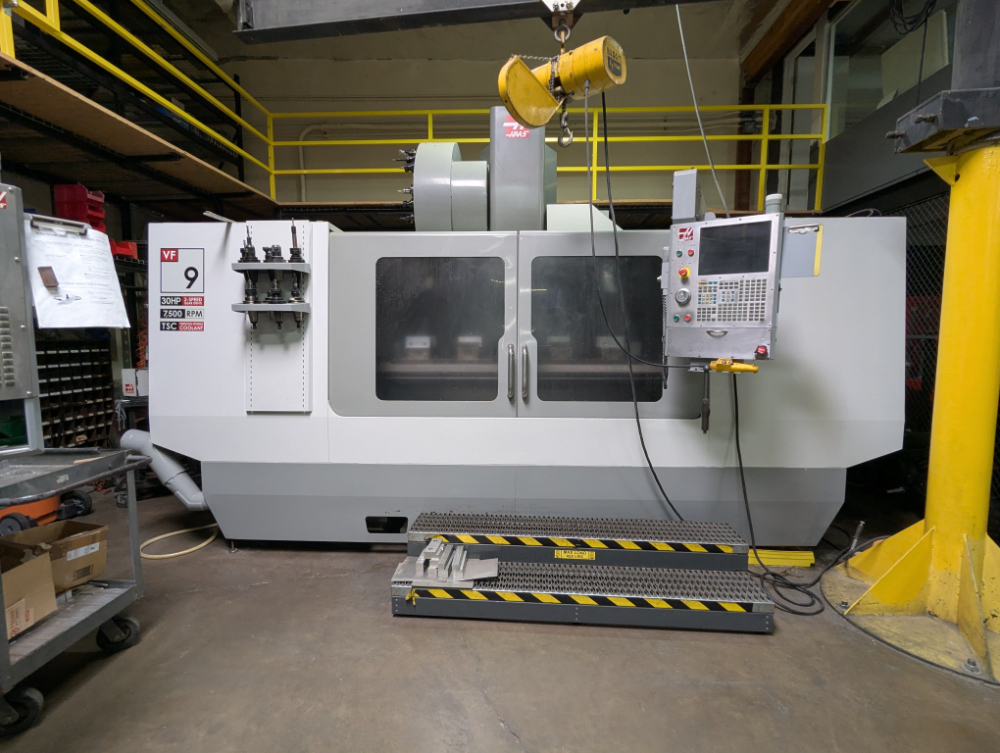

Haas VF-9
Type: Milling
Capacity: 40 x 20 x 25
Description: 3 axis CNC mill with 4th axis rotary milling, 50 Taper

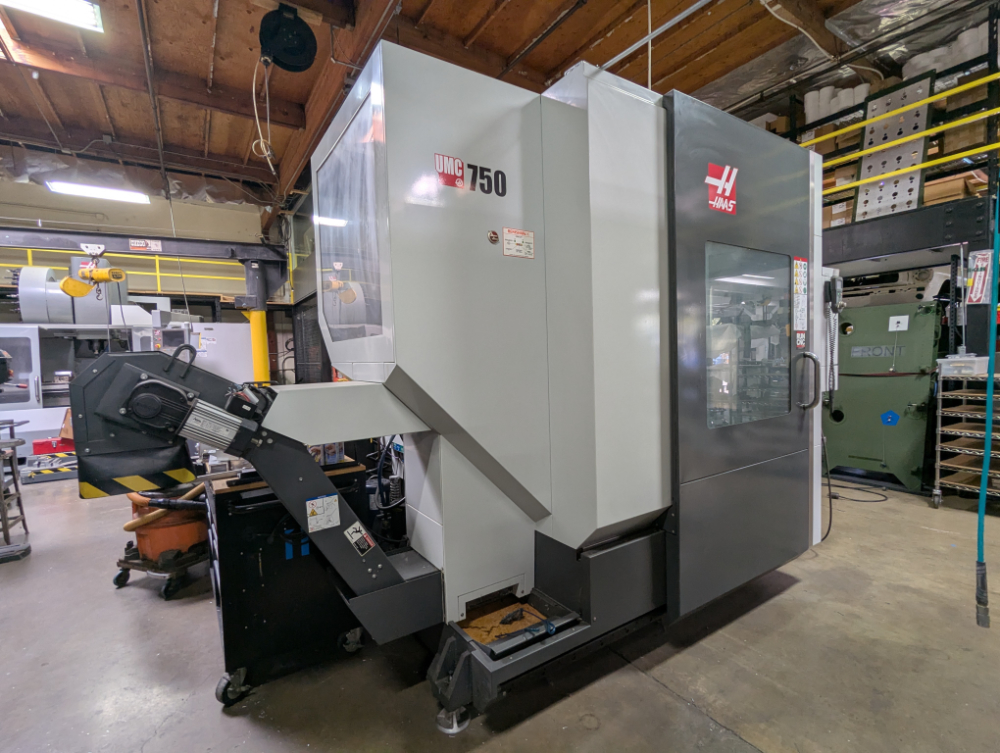

Haas UMC-750
Type: Milling
Capacity: 30 x 20 x 20
Description: 5 axis CNC mill

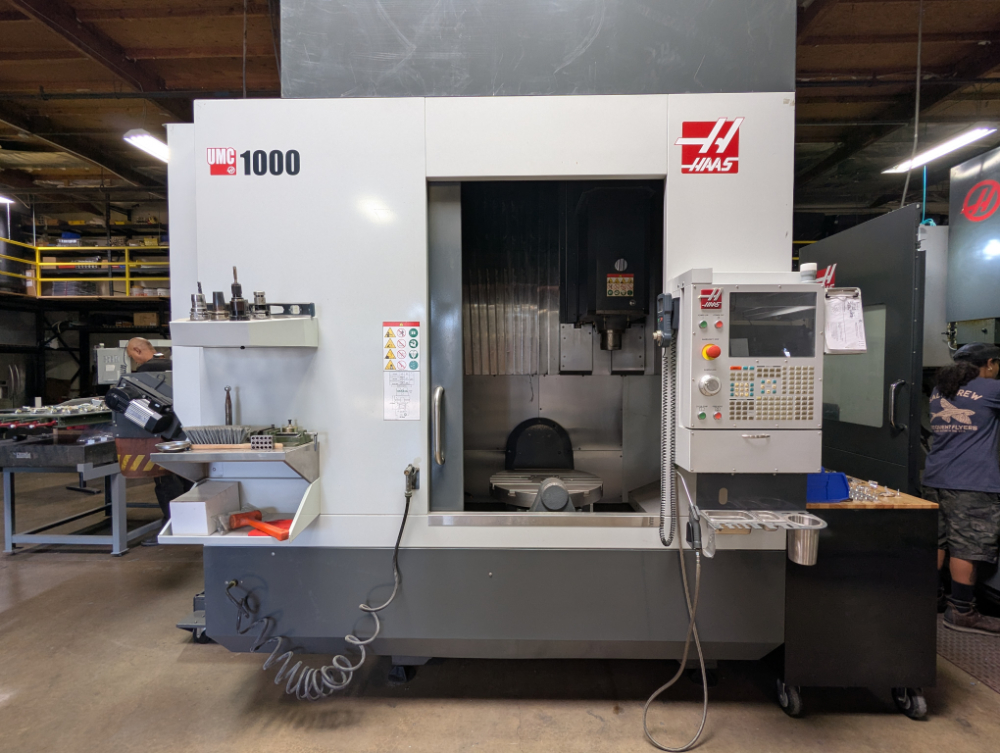

Haas UMC-1000
Type: Milling
Capacity: 40 x 24 x 24
Description: 5 axis CNC mill
Haas GR-510
Type: Milling
Capacity: 120 x 60 x 24
Description: 3 axis CNC mill with 4th and 5th axis rotary milling
Haas MDC-500
Type: Milling
Capacity: 20 x 14 x 20
Description: 3 axis CNC mill with 2 station pallet changer
Haas TL-15
Type: Turning
Capacity: 12” Dia x 20
Description: 5 axis CNC lathe, dual spindle with live tooling
Haas TL-25
Type: Turning
Capacity: 15” Dia x 22
Description: 5 axis CNC lathe, dual spindle with live tooling
WIA E160A
Type: Turning
Capacity: 11” Dia x 12
Description: 2 axis CNC lathe
Metrology Equipment
Brown & Sharpe Global 9128
Type: CMM
Capacity: 36 x 48 x 22
Description: 5 axis CMM
Brown & Sharpe Global 575
Type: CMM
Capacity: 20 x 28 x 20
Description: 5 axis CMM
Brown & Sharpe Gage 2000
Type: CMM
Capacity: 22 x 30 x 19
Description: 3 axis CMM
Hexagon Romer 8525
Type: CMM
Capacity: 48” omni-directional
Description: 7 axis CMM with laser scanning
Mark 10
Type: Load Testing
Capacity: 500 lbF capacity
Description: CNC controlled load cell
SPT 8A
Type: Hardness Testing
Capacity: 90 HRC capacity
Description: Manual operated hardness tester
Benchmark 16H
Type: Optical Comparator
Description: CNC controlled
Deltronic DH14-MPC
Type: Optical Comparator
Description: CNC controlled
Request A Quote
TC Machine Design Inc. is ready to deliver reliable, high-performance solutions custom tailored to your project’s specific requirements.
We specialize in managing complex development, manufacturing processes, engineering management and project planning.
Contact us today to discuss your project with us and request a quote.
